| Model |
NSW-620P |
NSW-40P |
NSW-30P |

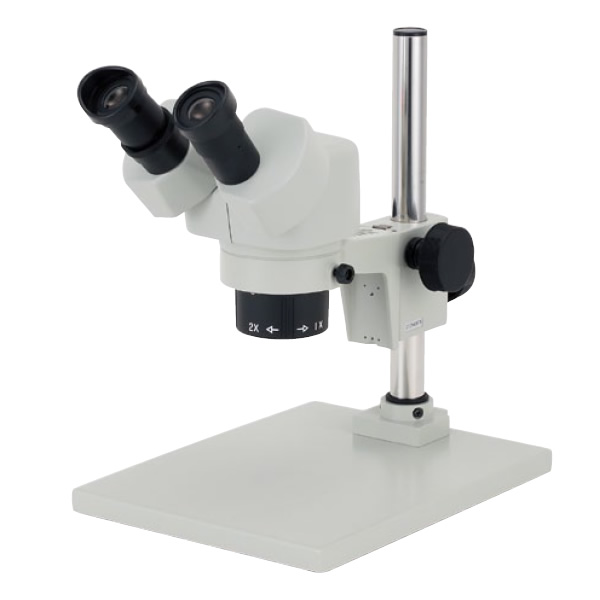

NSW-20P |
NSW-2P |
NSW-1P |
| Magnification(field of view) |
6x・20x(φ38.3mmーφ11.5mm) |
20x・40x(φ11.5mmーφ5.8mm) |
10x・30x(φ23mmーφ7.7mm) |
10x・20x(φ23mmーφ11.5mm) |
20x(φ11.5mm) |
10x(φ23mm) |
| Eyepieces |
Wide Field 10x (DSW10X), FN23 |
|
|
|
|
|
| Objective lenses |
0.6 x -2x |
2x・4x |
1x・3x |
1x・2x |
2x |
1x |
| Diopter adjustment |
+/-7.2D on left eyepiece tube |
|
|
|
|
|
| Interpupillary Distance |
52 mm – 75 mm |
|
|
|
|
|
| Working Distance |
113 mm |
64.3 mm |
82.5 mm |
113 mm |
|
|
| Stand(Height) |
Pole type (356 mm) |
|
|
|
|
|
| Incident Illumination |
Nil |
|
|
|
|
|
| Base Size |
220 mm x 284 mm |
|
|
|
|
|
| Overall Height |
356 mm |
|
|
|
|
|
| Net Weight |
4.1 kg |
|
|
|
4.0 kg |
|
| Accessories |
Rubber eyeguards, C-wrench, Dust cover |
|
|
|
|
|
