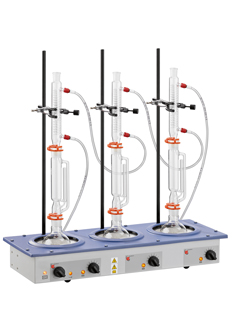

The 3 place multi position (extraction) mantle has a built-in electronic controller and offers a choice of heater only (EME3) or heater/stirrer (EMEA3) combination.
Technical Specification
| Material | Polypropylene top on powder-coated aluminium |
| Max element temperature | 450°C |
Heater Model Ordering Information
| Model | Flask Capacity | Dimensions (d x w x h), mm | No. of Recesses | Electrical Requirements | Shipping Weight, kg |
| EME30100/CEB | 3 x 100ml | 270 x 640 x 110 | 3 | 230v 50/ 60Hz, 180W UK and EU plug | 6.2 |
| EME30100/CEBX1 | 3 x 100ml | 270 x 640 x 110 | 3 | 115v 50/ 60Hz, 180W | 6.2 |
| EME30250/CEB | 3 x 250ml | 270 x 640 x 110 | 3 | 230v 50/ 60Hz, 450W UK and EU plug | 6.2 |
| EME30250/CEBX1 | 3 x 250ml | 270 x 640 x 110 | 3 | 115v 50/ 60Hz/ 450W | 6.2 |
| EME30500/CEB | 3 x 500ml | 285 x 755 x 130 | 3 | 230v 50/ 60Hz, 600W UK and EU plug | 7.4 |
| EME30500/CEBX1 | 3 x 500ml | 285 x 755 x 130 | 3 | 115v 50/ 60Hz, 600W | 7.4 |
| EME31000/CEB | 3 x 1000ml | 285 x 755 x 130 | 3 | 230v 50/ 60Hz, 900W UK and EU plug | 7.4 |
| EME31000/CEBX1 | 3 x 1000ml | 285 x 755 x 130 | 3 | 115v 50/ 60Hz, 900W | 7.4 |
Heating/Stirrer Model Ordering Information
| Model | Flask Capacity | Dimensions (d x w x h), mm | No. of Recesses | Electrical Requirements | Shipping Weight, kg |
| EMEA30100/CE | 3 x 100ml | 270 x 640 x 110 | 3 | 230v 50/ 60Hz, 220W UK and EU plug | 7 |
| EMEA30100/CEX1 | 3 x 100ml | 270 x 640 x 110 | 3 | 115v 50/ 60Hz, 220W | 7 |
| EMEA30250/CE | 3 x 250ml | 270 x 640 x 110 | 3 | 230v 50/ 60Hz, 490W UK and EU plug | 7 |
| EMEA30250/CEX1 | 3 x 250ml | 270 x 640 x 110 | 3 | 115v 50/ 60Hz, 490W | 7 |
| EMEA30500/CE | 3 x 500ml | 285 x 755 x 130 | 3 | 230v 50/ 60Hz, 640W UK and EU plug | 8.4 |
| EMEA30500/CEX1 | 3 x 500ml | 285 x 755 x 130 | 3 | 115v 50/ 60Hz, 640W | 8.4 |
| EMEA31000/CE | 3 x 1000ml | 285 x 755 x 130 | 3 | 230v 50/ 60Hz, 940W UK & EU plug | 8.4 |
| EMEA31000/CEX1 | 3 x 1000ml | 285 x 755 x 130 | 3 | 115v 50/ 60Hz, 940W | 8.4 |
